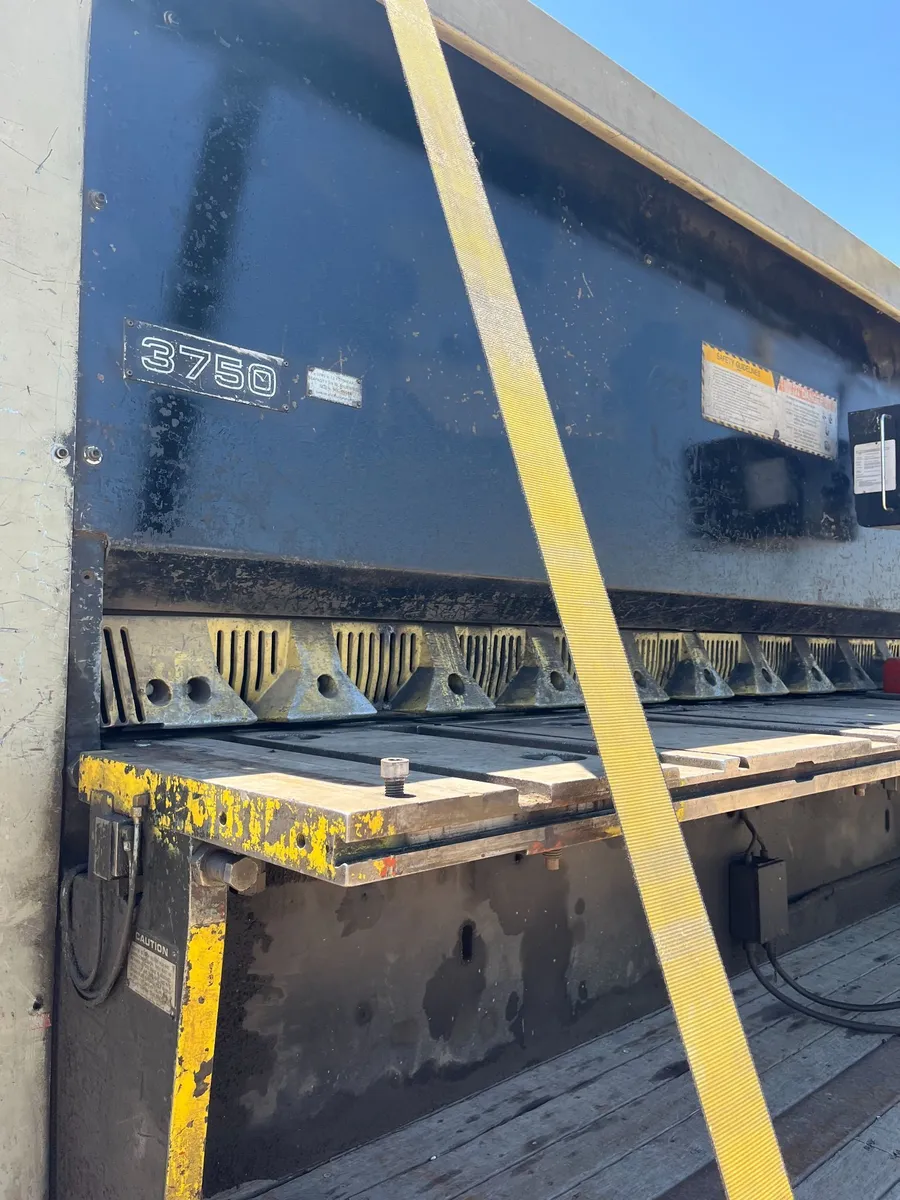

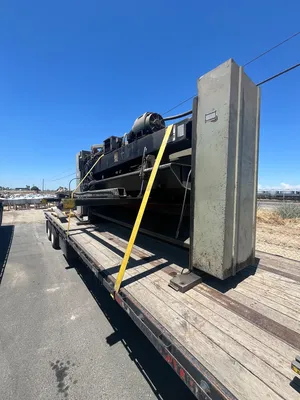

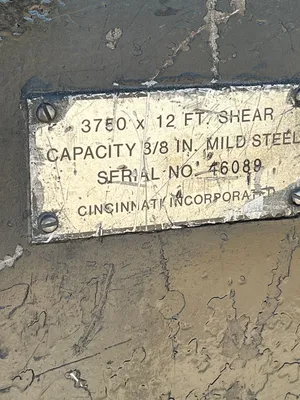

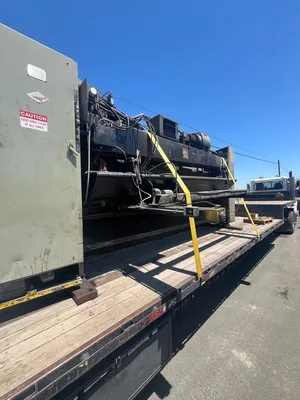

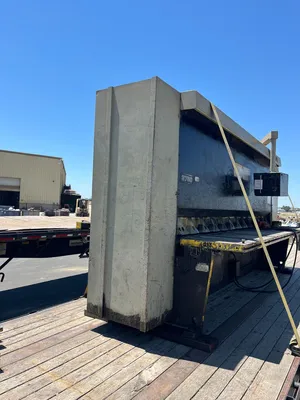

12' x 3/8" Cincinnati 3750 x 12 FT CNC Shear, 1989-
Have one to sell?
ConditionUsed
1 available
Cutting Capacity - Mild Steel: ⅜” X 144”
Overall Cutting Length: 144”
Rake Angle: 7/16” / Foot
Number of Hydraulic Hold-Downs: 15
Hold Down Force: 14.9 TONS
Distance Under Hold-Downs: ⅝”
Long Stroke: 18 SPM
Short Stroke: 60 SPM
Motor: 40 HP 3/60
Cincinnati CNC Control
Programmable Rake Angle
Blade Gap and Backgauge Positioning with Swing Up 48” Backgauge
Squaring Arm
Front Support Arm
Imperial
| Max Thickness | 0.375" |
| Length of Blade | 10' |
| Hyd/Mech | Hyd |
| Back Gauge | 48" |
| Power | 40 hp |
| SPM | 50 strokes/min. |
| Control | CNC |
| Dimensions | 20'L x 8'W x 9'H |
| Weight | 33,000 lbs |
Cutting Capacity - Mild Steel: ⅜” X 144”
Overall Cutting Length: 144”
Rake Angle: 7/16” / Foot
Number of Hydraulic Hold-Downs: 15
Hold Down Force: 14.9 TONS
Distance Under Hold-Downs: ⅝”
Long Stroke: 18 SPM
Short Stroke: 60 SPM
Motor: 40 HP 3/60
Cincinnati CNC Control
Programmable Rake Angle
Blade Gap and Backgauge Positioning with Swing Up 48” Backgauge
Squaring Arm
Front Support Arm
